Need help identifying a turbo

Post by dmr » Thu Jan 31, 2008 6:14 pm

hey guys.
i was told this turbo came off a subaru, but have no knowledge on subaru turbos. can anyone give me some information on it? what's it capable of? what's it worth?

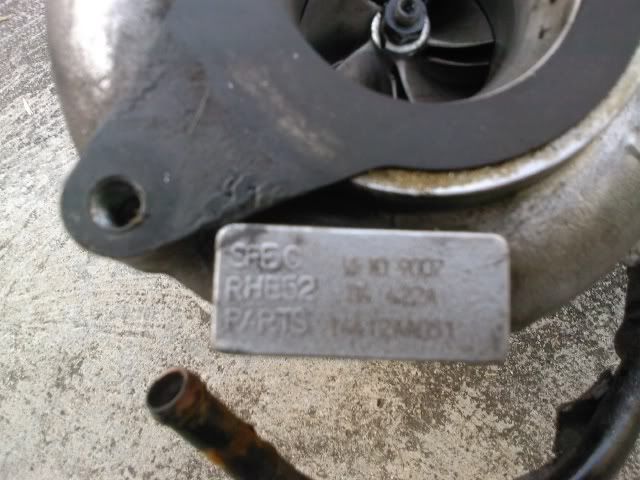

it has SPEC: VF 10 9007 on the tag

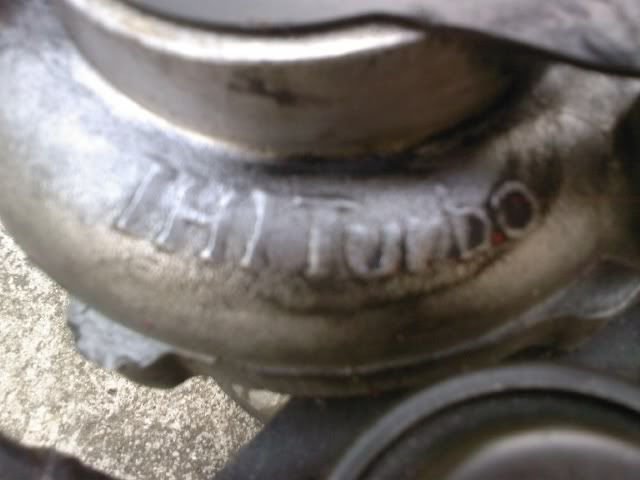

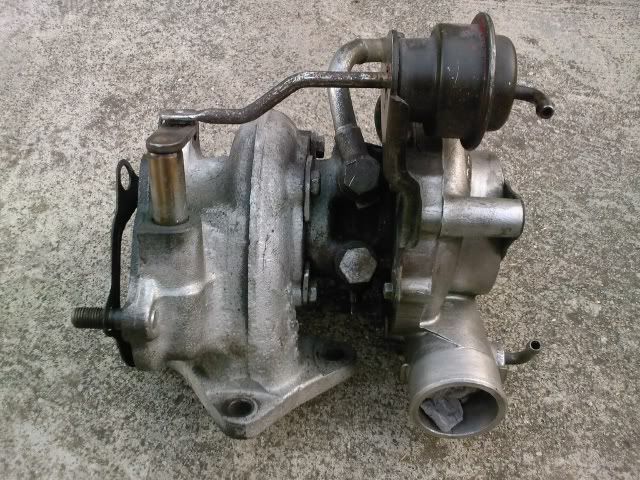

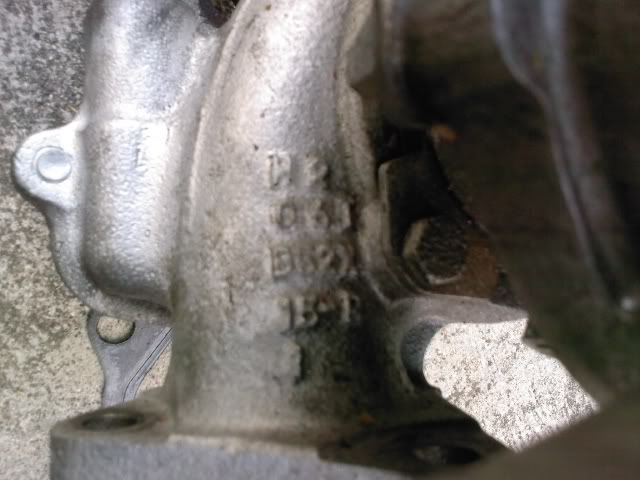

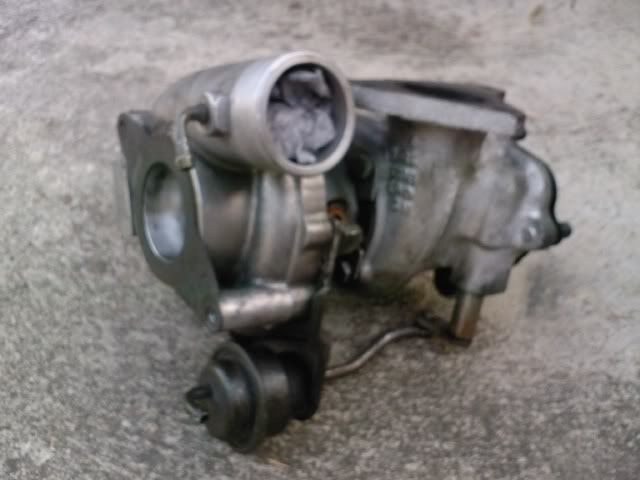

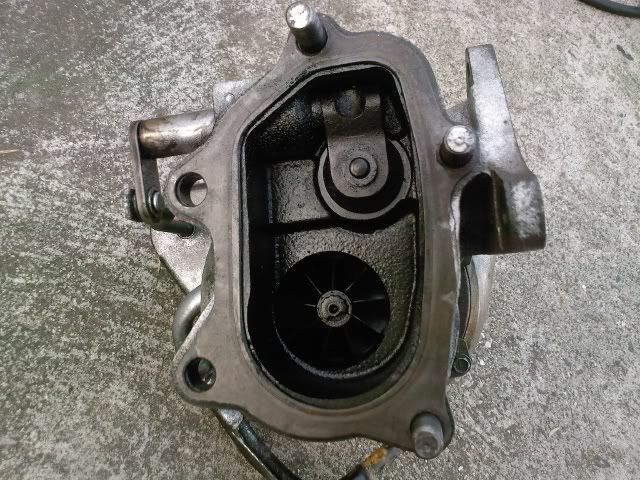

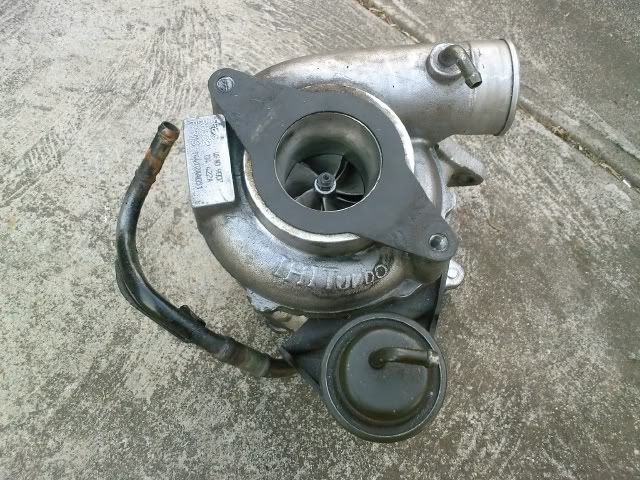

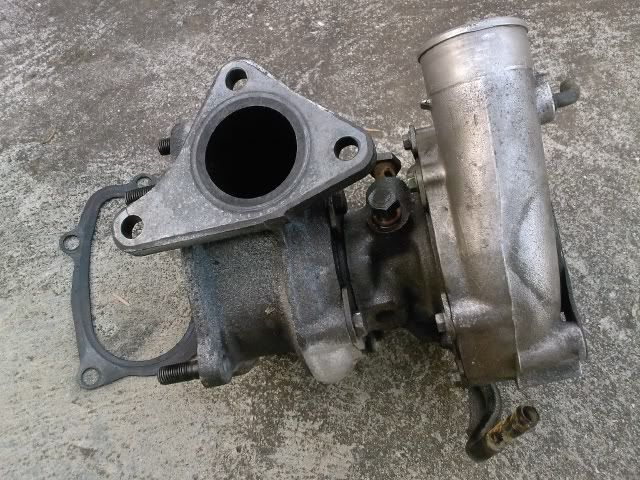

here's some pics:


any help is appreciated

User avatar
Matatak
Senior Member
Posts: 2393
Joined: Fri May 04, 2007 8:06 pm
Location: Gnangara next to pines

Post by Matatak » Thu Jan 31, 2008 6:26 pm

VF 10 9007
isnt it a VF10 turbo.
which comes off a Legacy auto?
Wagon is no longer....:(

The Subaru Wacky Workshop
-All About the WA Boys :D

User avatar
Suba
General Member
Posts: 1301
Joined: Tue Oct 04, 2005 10:00 am
Location: Seville Grove . Western Australia.
Contact:

Post by Suba » Thu Jan 31, 2008 7:37 pm

yep , thats whats in my Liberty .

Mike.

User avatar
Alex
Elder Member
Posts: 5405
Joined: Wed Nov 23, 2005 10:00 am
Location: Perth
Contact:

Post by Alex » Thu Jan 31, 2008 8:26 pm

Matatak wrote:isnt it a VF10 turbo.
which comes off a Legacy auto?
google ftw.

alex
my07 Outback
my13 Hyundai i45(shhhh)
my02 Gen3 Liberty limited ed.

previously
L-series wagon, LSD, EJ20turbo, 29in tyres, 'wanky wagon'
2000 gen3 outback, lifted, otherwise stock.

User avatar
AndrewT
Senior Member
Posts: 4777
Joined: Tue Oct 04, 2005 10:00 am
Location: WA
Contact:

Post by AndrewT » Thu Jan 31, 2008 9:06 pm

if it's a VF10 it's worth about $100 at the absolute max if it's in good condition.
They are a very old turbo (older than 1992) and the smallest EJ turbo you can get. Came off the first Liberty RS's and only the auto models.

That's the info I have heard anyways.

You can get TD04's from WRX's for about $100 usually too now.

User avatar
Matatak
Senior Member
Posts: 2393
Joined: Fri May 04, 2007 8:06 pm
Location: Gnangara next to pines

Post by Matatak » Thu Jan 31, 2008 9:46 pm

Alex wrote:google ftw.

alex
yeppo :p


but i only googled to find out wt it came on LOL.
Wagon is no longer....:(

The Subaru Wacky Workshop
-All About the WA Boys :D

User avatar
Gannon
Senior Member
Posts: 4580
Joined: Sat Nov 05, 2005 10:00 am
Location: Bowraville, Mid Nth Coast, NSW

Post by Gannon » Fri Feb 01, 2008 5:34 am

Looks like the compressor housing has been clocked 180deg
Current rides: 2016 Mitsubishi Triton GLS & 2004 Forester X
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
