Ea81 dizzy wiring- single wire

Post by Xp_weapon » Sat Apr 26, 2014 3:08 pm

Hi there I've got a problem with a off road buggy I'm fixing up
I've just swapped a ea81 engine into it
But I'm having trouble with dizzy an coil wiring

My dizzy has one single blue wire on it, all other threads I've red say there's susposed to be a yellow an a black an white

But I have a single blue wire running from bottom of dizzy to near the dizzy cap

Any idea if this is susposed to go to + or - on coil?

I'll try post a pic, will explain it better cheers guys

User avatar
Xp_weapon
Junior Member
Posts: 5
Joined: Sat Apr 26, 2014 2:59 pm
Location: Sa

Post by Xp_weapon » Sat Apr 26, 2014 3:12 pm

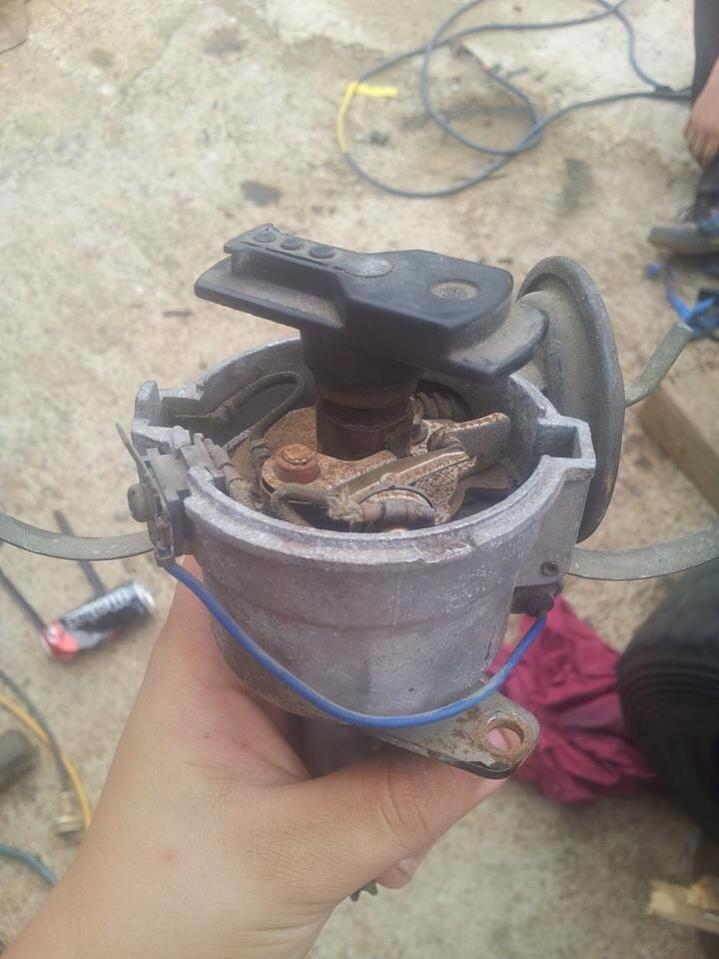

Pic of dizzy any one know what type it is an what coil should be used
Attachments

User avatar
Silverbullet
Senior Member
Posts: 2878
Joined: Mon Aug 23, 2010 6:20 pm
Location: Adelaide

Post by Silverbullet » Sat Apr 26, 2014 4:01 pm

That's a points based dizzy so it won't have the yellow and black+white wire. With points based you need a points type coil with external ballast resistor. Only electronic ignition units have 2 wires going to the coil (electronic ignition coil, with no ballast resistor) That blue wire goes down to the condensor which should be attached somewhere at the bottom of the distributor. Where that blue wire ends up top there is another spade terminal which should be connected to the negative side of the primary terminal on the coil.

Hope this helps! :) Also post pics of the buggy ;)
Will it ever end!?
-EA81 TWIN CARB!!!!
-L series 5 speed
-Custom paint job
-2" lift
-Full custom re-wire
-L series front end

User avatar
Xp_weapon
Junior Member
Posts: 5
Joined: Sat Apr 26, 2014 2:59 pm
Location: Sa

Post by Xp_weapon » Sat Apr 26, 2014 6:02 pm

Thanks mate really appreciate it, now since I removed the dizzy how do I go about reinstalling it, in relation to timing?
Getting the rotor in correct spot to cylinder at tdc ect ?
Thanks again

User avatar
steptoe
Master Member
Posts: 11582
Joined: Thu Oct 06, 2005 10:00 am
Location: 14 miles outside Gotham City

Post by steptoe » Sat Apr 26, 2014 6:08 pm

first step is to get #1 on its TDC of compression stroke, then I shift to timing mark on flywheel, say 10 DBTDC.

Work out where the #1 lead goes to on the dizzy cap, and which way it goes on, point rotor in rough direction, drop it in, see if it lines up. Think the points should be open, rotor pointing close to its terminal inside cap. Might start !

User avatar
Xp_weapon
Junior Member
Posts: 5
Joined: Sat Apr 26, 2014 2:59 pm
Location: Sa

Post by Xp_weapon » Sat Apr 26, 2014 8:12 pm

Thanks mate will give it a go tomorrow
Had a quick look on the fly wheel for timing marks
But couldn't see much
Will have to try clean up flywheel tomorrow
Thanks again

User avatar
RSR 555
Elder Member
Posts: 6951
Joined: Sat Nov 10, 2007 10:42 am
Location: ATM... stuck in Rockingham

Post by RSR 555 » Mon Apr 28, 2014 11:30 am

Oh.. another thread.. well I replied in the other one.. sorry

I would also like to add the firing order is 1,3,2,4

I'd also say once you've cleaned up the flywheel timing marks, then just get a white paint marker and make a mark in 8 degrees before top dead centre.
You know you are getting old when the candles on your birthday cake start to cost more than the cake itself.

RSR Performance
Home of the 'MURTAYA' in Oz
Subaru Impreza WRX based Sportscar
[SIGPIC][/SIGPIC]

Disclaimer: Not my website but hyperlink here to Subaru workshop manuals

User avatar
Xp_weapon
Junior Member
Posts: 5
Joined: Sat Apr 26, 2014 2:59 pm
Location: Sa

Post by Xp_weapon » Wed Apr 30, 2014 10:49 pm

Thanks for all the help guys
I got it sorted out, planing on up grading to electric ignition soon
Points will do for the mean time now
