Will this kit fit my 85L?

the boy from tas · Post by **the boy from tas** » Tue Jun 01, 2010 1:04 pm

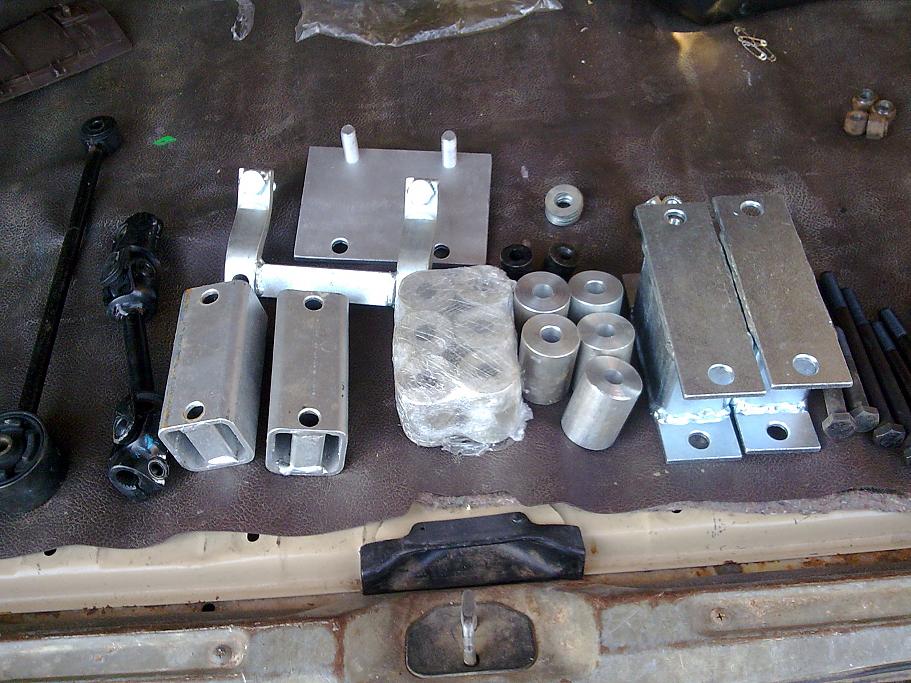

please see attached picture and tell me if its the right kit..
thanks guys

brumbybear · Post by **brumbybear** » Tue Jun 01, 2010 1:38 pm

where are your strut tops???

the boy from tas · Post by **the boy from tas** » Tue Jun 01, 2010 3:20 pm

brumbybear wrote:where are your strut tops???

ive got them. just not in the photo.

Venom · Post by **Venom** » Tue Jun 01, 2010 3:56 pm

Looks like the 3" BYB kit i sold on ebay. If it is then it should fit. The lift kit was made for an L series with power steering rack. If you have a manual steering rack then the steering extension won't be the right size, but everything else should be ok.

the boy from tas · Post by **the boy from tas** » Fri Jun 04, 2010 12:22 am

Venom wrote:Looks like the 3" BYB kit i sold on ebay. If it is then it should fit. The lift kit was made for an L series with power steering rack. If you have a manual steering rack then the steering extension won't be the right size, but everything else should be ok.

yeah thats where i got it so guess its yours! small world

well i was looking around and and can see where most things are going to fit in, apart from the solid metal plate bit. and the two small black bushes..
any help would be appreciated.

daza · Post by **daza** » Fri Jun 04, 2010 7:44 am

the boy from tas wrote: well i was looking around and and can see where most things are going to fit in, apart from the solid metal plate bit. and the two small black bushes..
any help would be appreciated.

The Metal Plate goes between the diff and the diff carrier to space the diff down.
The two 1" black blocks go under the tailshaft center bearing mounts.
Daza

strechy1 · Post by **strechy1** » Sun Sep 19, 2010 9:33 am

Hi do you have or do you know of an install or fitting instructions to put a 2" lift on a L series wagon .I could go in and gues but it would be easier to follow a diagram.
Thanks Jon

Gannon · Post by **Gannon** » Sun Sep 19, 2010 10:40 am

Can you keep all the old bolts you remove from your car and give them to me?
