Post by Bantum » Sat Jan 12, 2013 3:49 pm

steptoe wrote: ... My Brumby fan dial lights up, think the bright intenisfies with the speed too ! ...
There is a dial on top of the main light switch that adjust the dash light levels ... ;)


Note : This is also a spare dash which I'm looking at swaping over, its the electroic version though ...

Add : + Wiring :

steptoe wrote: ... MY's other than Brumbies got lights behind the wiper and lights labels in the pod just below each switch ...
Yep - done that mod - looks prudy. I will have to take some pic's of it later ... :)

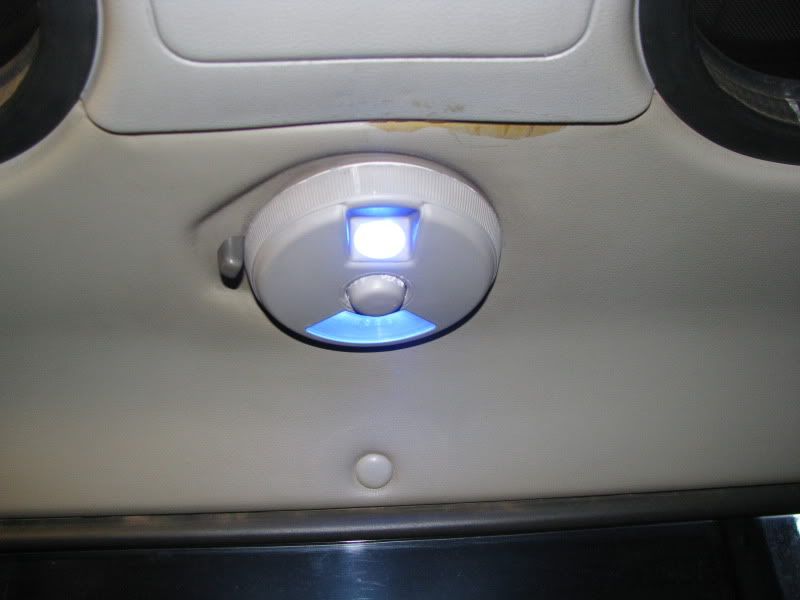

Also did the main cabin lights to LED's, more here ...

Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Console Update ...

Post by Bantum » Fri Jun 21, 2013 10:35 pm

I should follow up with what I did with some of this lot ...

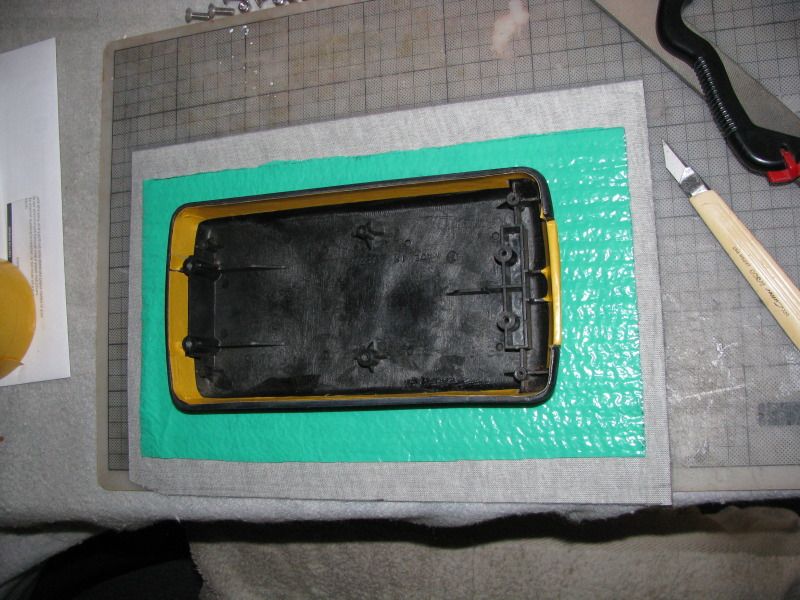

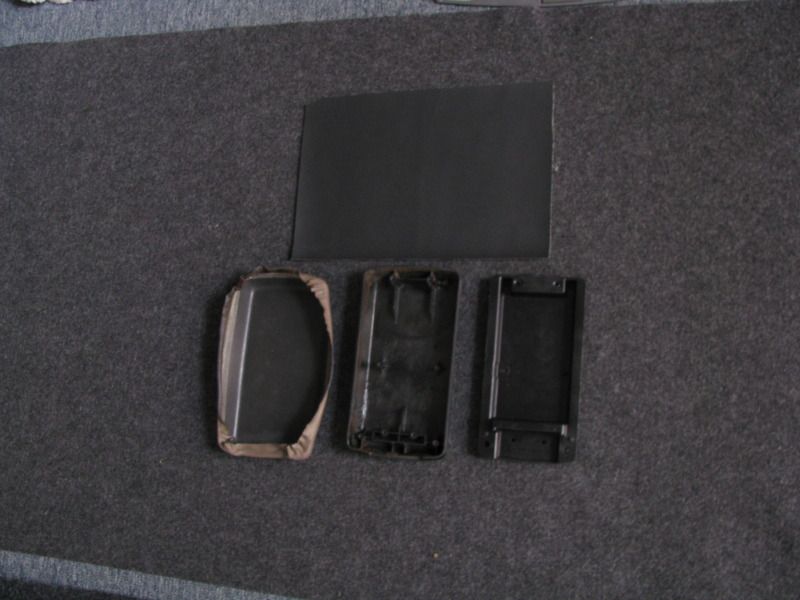

I took apart the console & replaced the cover on it ...


Added some padding ...

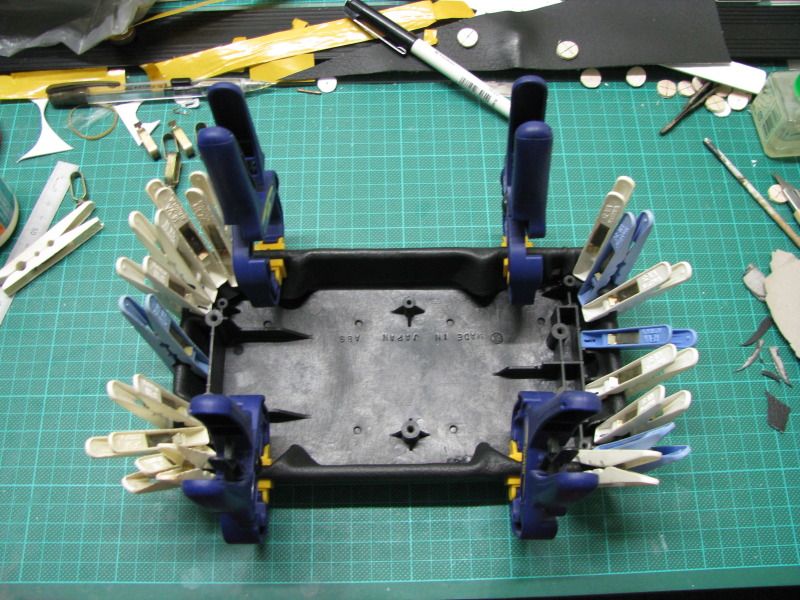

+ some shots of fixing it up ... ( Note : the orange tape is double side sticky )


Note : the green stuff peels off when ready to stick it ...

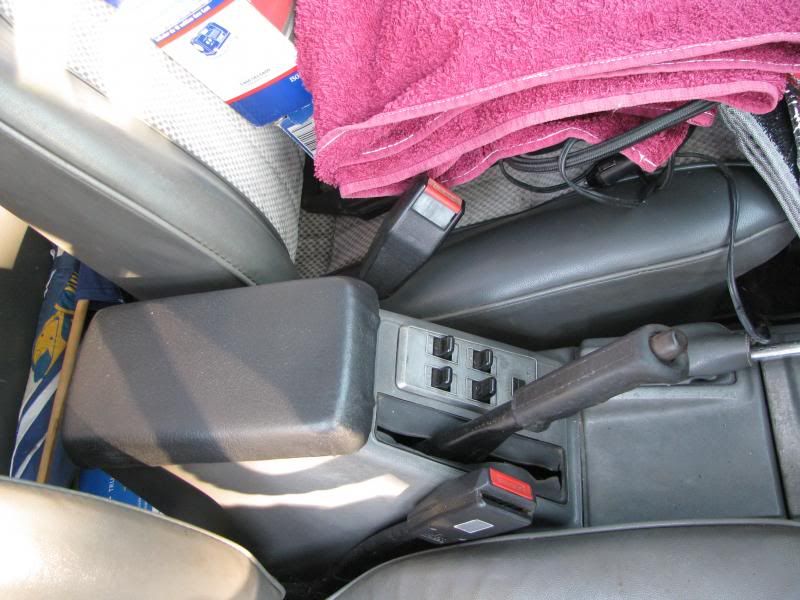

Then finally installed :


You'll note that the switches were made good for a power window conversion, still yet to be done though ... :(

Note : I'm still after the rubber surround for the brake handle ...

Cheers, Bantum ...
Top
User avatar
El_Freddo
Master Member
Posts: 12626
Joined: Tue Oct 04, 2005 10:00 am
Location: Bridgewater Vic
Contact:
Contact El_Freddo

Post by El_Freddo » Mon Jun 24, 2013 7:20 pm

Yeah those hand brake rubber strips are hard to come by in good condition. I wouldn't mind a new one too. Maybe we should try using that "paint brush" style black brush strip stuff that you see on the front wheel arches of prime movers/buses etc but in a shorter length to suit.

Cheers

Bennie
"The lounge room is not a workshop..."
El Freddo's Pics - El_Freddo's youtube
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

New Spare Wheel ...

Post by Bantum » Sun Jul 28, 2013 9:55 pm

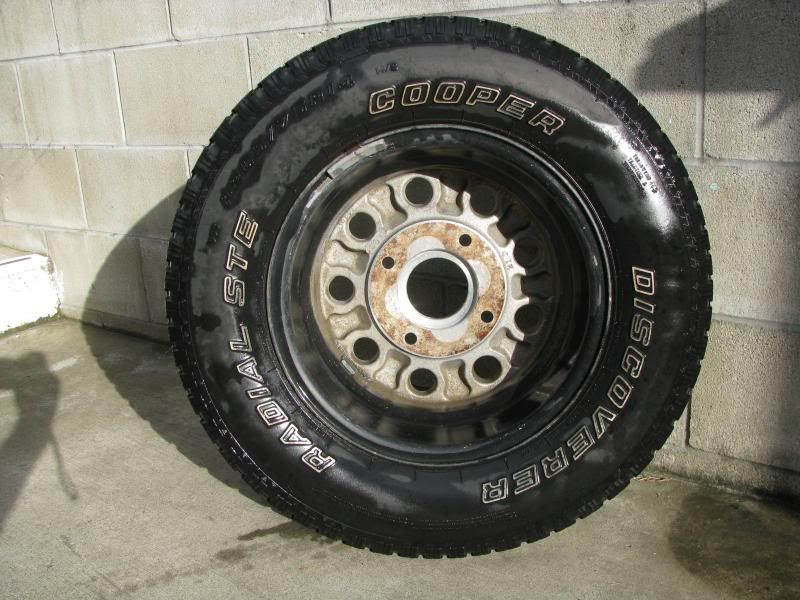

Finally found one of these on Gumtree ... ( lost the link )

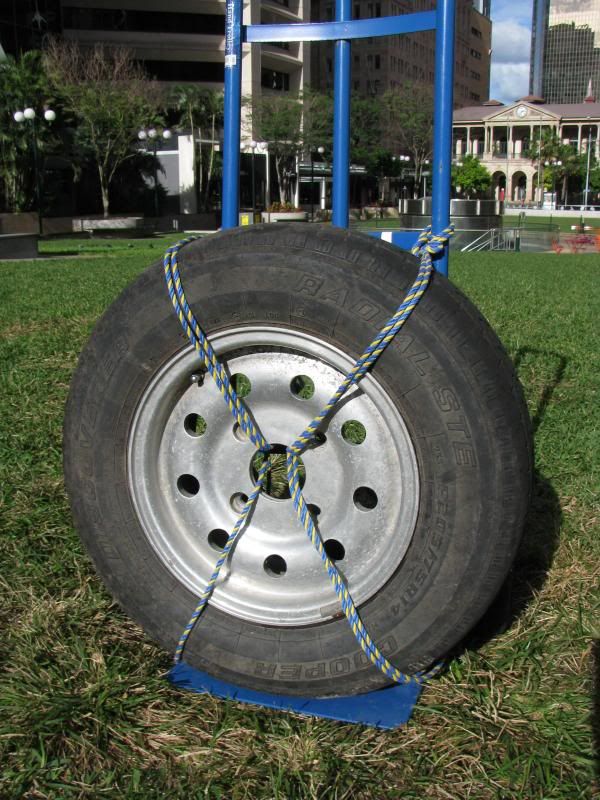

Note : This is a 'Performance' Modular 14x6" wheel ...

Took it home today ...


& gave it a bit of a clean :

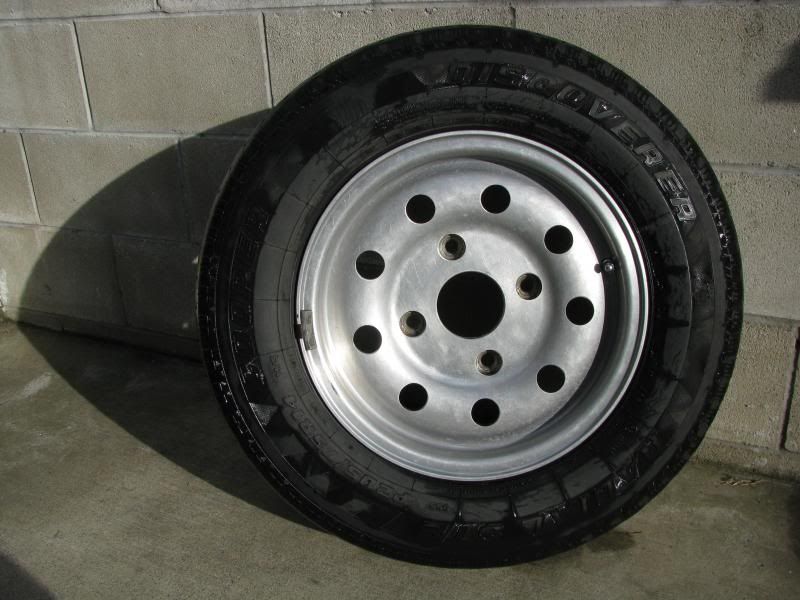

Back of wheel :

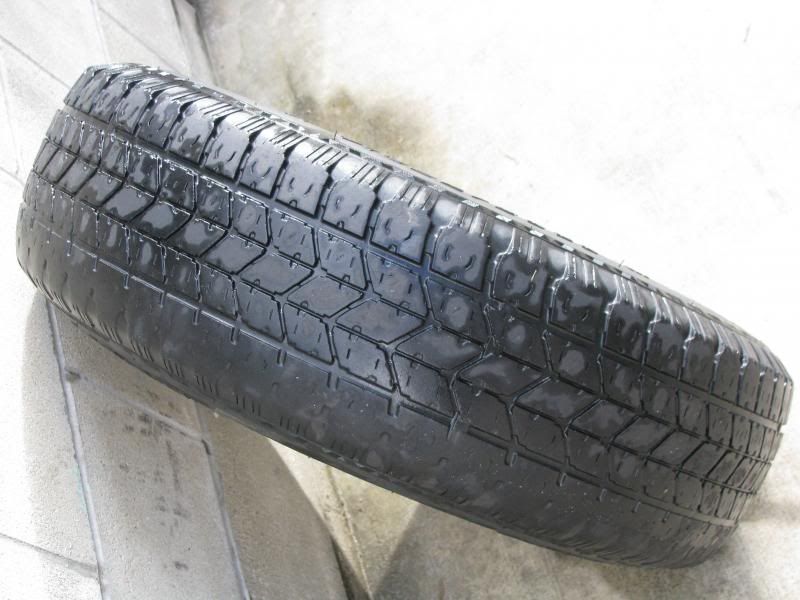

Tyre is gonski though :


All I have to do now is reunion it with the Brumby ... :D

Cheer's, Bantum ...
Top
User avatar
Rodeo4jake
Junior Member
Posts: 297
Joined: Fri Oct 19, 2012 5:42 am
Location: Tylden Victoria

Post by Rodeo4jake » Mon Jul 29, 2013 9:45 am

I saw that on there & thought of you. Good that you managed to grab it.

Cheers Jake
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Sketched ...

Post by Bantum » Fri Mar 07, 2014 12:24 am

Thanks Jake ... :)

Here is a sketch I've just done for Ken ...


Cheers, Bantum ...
Top
User avatar
Tigger
Junior Member
Posts: 414
Joined: Wed Dec 28, 2005 10:00 am
Location: West Brisbane

Post by Tigger » Fri Mar 07, 2014 2:01 pm

Awesome sketch Bantum!!! Looks great :)
2012 Subaru Forester - 2.0D Premium ~ 2002 Subaru Forester - Limited (Lifted)
Top
User avatar
El_Freddo
Master Member
Posts: 12626
Joined: Tue Oct 04, 2005 10:00 am
Location: Bridgewater Vic
Contact:
Contact El_Freddo

Post by El_Freddo » Wed Mar 12, 2014 9:41 pm

If this was bookface I'd be smashing a like button right now!

Great effort mate!

Cheers

Bennie
"The lounge room is not a workshop..."
El Freddo's Pics - El_Freddo's youtube
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Skined ...

Post by Bantum » Thu May 22, 2014 3:27 am

Found some more pictures to show what was intended to put on doors :

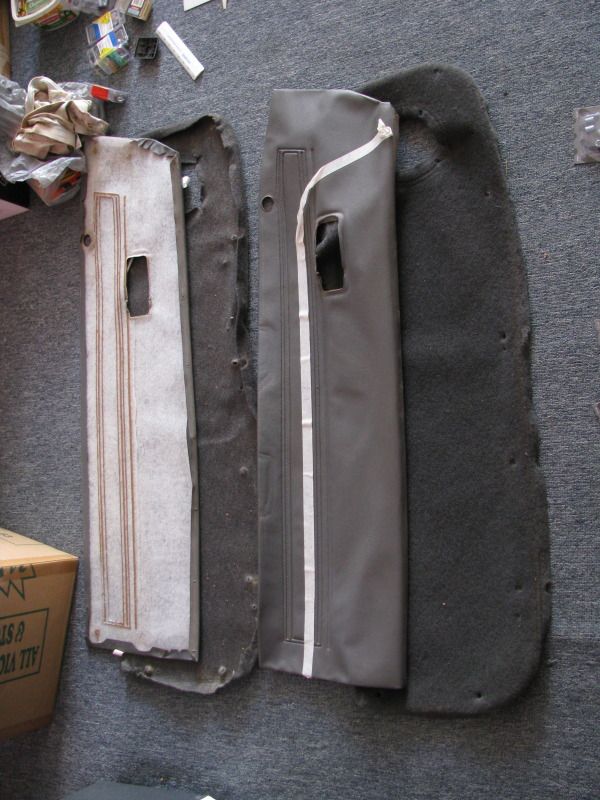

Old skin :


New trim :


& cut up :


That's about as far as I got ... :(

Ciao, Bantum ...
Top
User avatar
Silverbullet
Senior Member
Posts: 2920
Joined: Mon Aug 23, 2010 6:20 pm
Location: Adelaide

Post by Silverbullet » Thu May 22, 2014 6:45 pm

Watching with interest! Want to see what you do where that old embossed strip used to be on the upper half, since you can't replicate the embossing. Looking for ideas for my interior ;)
Will it ever end!?
-EA81 TWIN CARB!!!!
-L series 5 speed
-Custom paint job
-2" lift
-Full custom re-wire
-L series front end
Top
User avatar
El_Freddo
Master Member
Posts: 12626
Joined: Tue Oct 04, 2005 10:00 am
Location: Bridgewater Vic
Contact:
Contact El_Freddo

Post by El_Freddo » Sat May 24, 2014 11:25 am

Hmmm... Interesting. I'll be keen to see what you end up with.

Will your panels have that spongy foam stuff under the cover or will you glue it straight to the panel?

Cheers

Bennie
"The lounge room is not a workshop..."
El Freddo's Pics - El_Freddo's youtube
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Padding ...

Post by Bantum » Sun May 25, 2014 1:24 pm

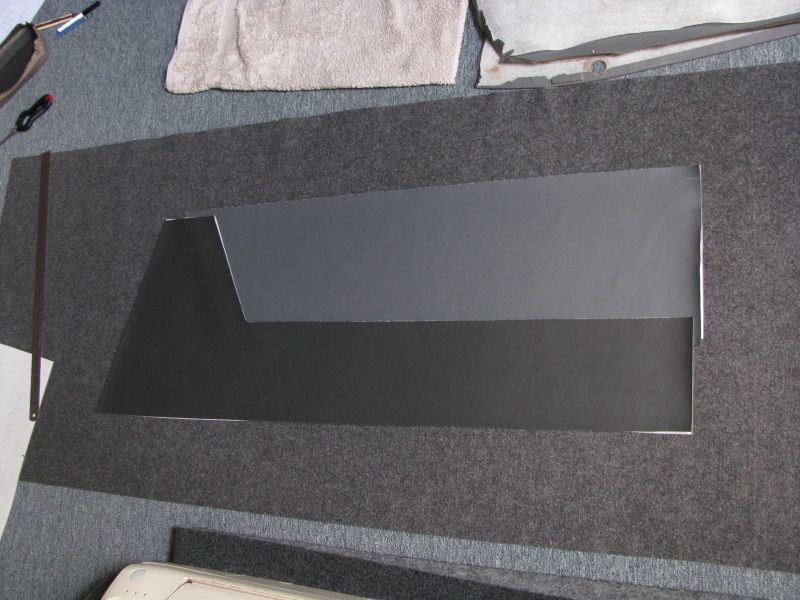

The masking tape in previous photo was a rough outline of a 'break line' in different coloured vinyls ... :)
( See earlier sketch for concept )

Add : Going back over this, found it had gone missing again - So here is the proposed door layout :


Haven't got round to the next bit of putting it all together - but had thought of taking it to an upholster to get some 'stitching' done ... ;)

The white foam wadding is to go on lower door half ( Spray glued to carpet ? ) & the double sided sticky padding goes on top half of door ... 8)

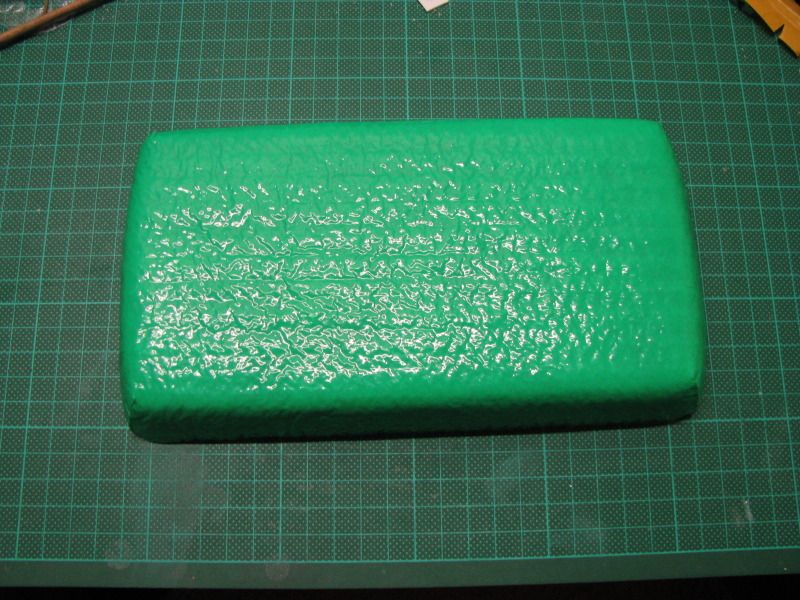

Note : The Green covered stuff is the same as used on Center console & The green plastic peels off when your ready to stick it ... :p

Might do some more sketching to complete the 'back' & side interior ... :D

Cheers, Bantum ...
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Brumby Wiring Diagrams ...

Post by Bantum » Sun Sep 21, 2014 1:42 am

Nothing really new to add here, but I did find a wiring diagram for the earlier 1980 BRAT :

downloads.php?do=file&id=131

I'm still trying to find one for MY '85 Brumby - Failing that, I'm working on a drawing mash up - based on all the others I have found ... ;)

I will post the result here when done ... :D ( might take a while though )

Cheers, Bantum ...
Top
User avatar
taza
General Member
Posts: 1417
Joined: Sun Dec 26, 2010 10:21 pm
Location: Perth, Australia

Post by taza » Sun Sep 21, 2014 9:44 pm

I have a brumby wiring diagram in one of the Gregory's manuals at work. Ill take a pic if you want?
I used it to identify all the feeds going to the plugs for the cluster. My goal is to wire in an L-Series anologue 4 gauge cluster with tacho :P
Managed to find the inputs for the plugs on that with a US diagram online. Took hours of searching though.
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Encore ...

Post by Bantum » Sun Sep 21, 2014 10:10 pm

Thanks Taza,

Yep I already have that - same as this one : http://webmonkees.com/art/sub/85bratwires.jpg

Will keep looking out for others, but my aim is to make my own that is fit for purpose ... :p

Will share when completed, but again - don't expect it anytime soon ... :p

Cheers, Bantum ...
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Gen I Wiring Diagram ...

Post by Bantum » Mon Oct 27, 2014 4:00 pm

Thanks to Willy for finding this :

downloads.php?do=file&id=133

Do you know what book its from ?

Add : Did a side by side comparison & interesting to note how much simpler the Aussie Brumby is than the US BRAT ... :)

Still looking for a Gen II wiring diagram though ... :(

Cheers, Bantum ...
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Tools ...

Post by Bantum » Sun Dec 07, 2014 2:56 pm

An early Christmas Pressy :




Found this tool kit on the trip to Currumbin Wreckers ... :)

Cheers, Bantum ...
Top
User avatar
Bantum
General Member
Posts: 1994
Joined: Sun Jul 29, 2012 4:30 pm
Location: Northern Territory + QLD
Contact:
Contact Bantum

Locked up ...

Post by Bantum » Tue Dec 23, 2014 2:24 pm

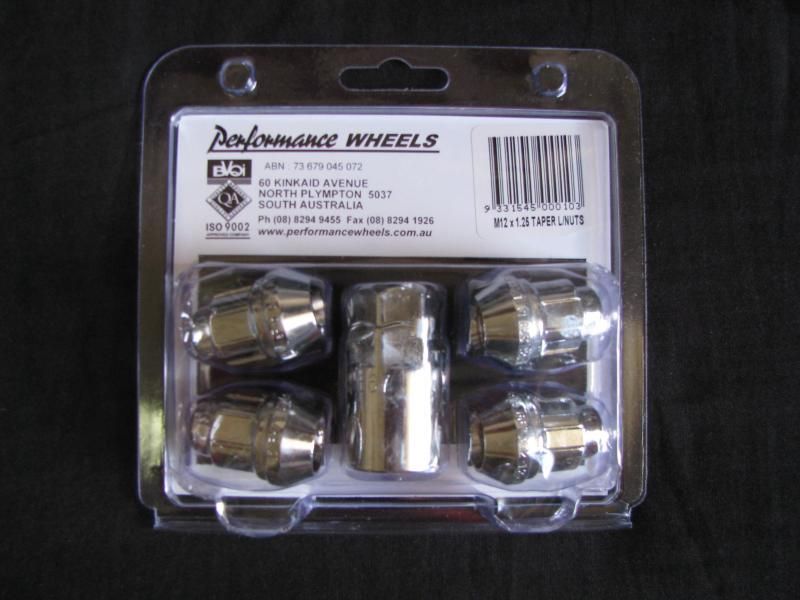

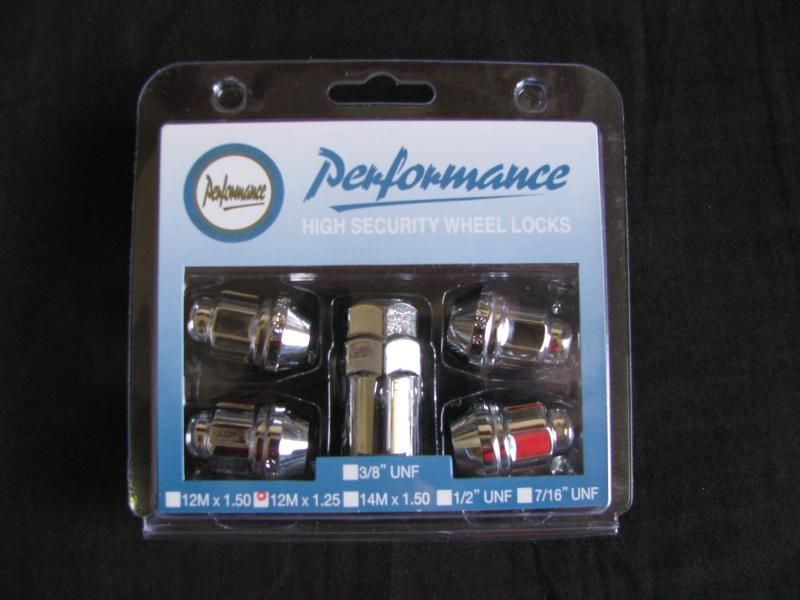

Found some Performance Wheels stuff :



More to come ( when it arrives in the post ) ... :)

Add :

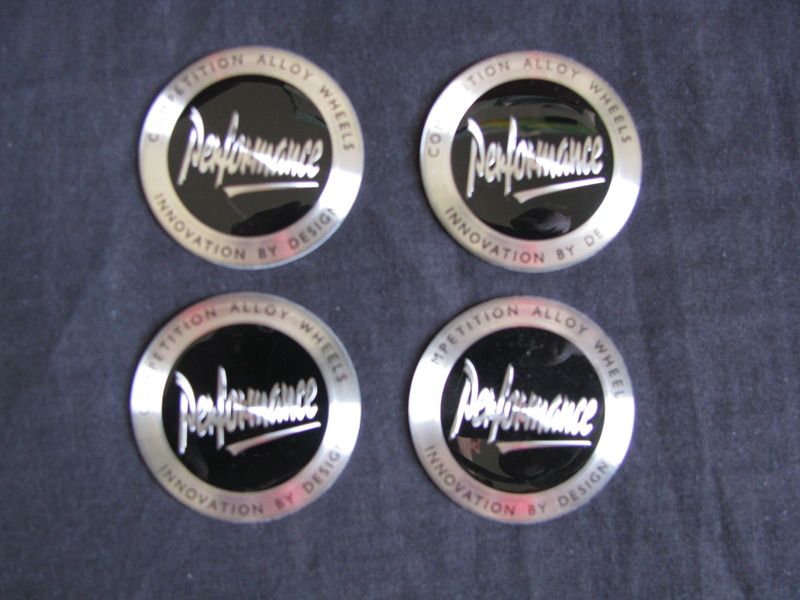

These also arrived - 'stickies' for the Centercaps :
