Got bored, so i made a new intake
First week of my holidays and its been raining since monday. Not happy, i had heaps planned.
Anyway, i got bored and got thinking about the tiny size of the intake on my Outback, so i went to the hardware and bought two 90, one 45 and one 22 degree 90mm stormwater bends.
I got a 90mm holesaw and cut a bigger hole in my airbox, and then used the bends to connect it to the over radiator intake funnel.
It isnt finished yet, im gonna drive it for a week and see how it goes, it needs a support bracket and its kinda noisy at low revs (sounds awesome above 4000rpm) so im thinking of grafting the resonator back on.

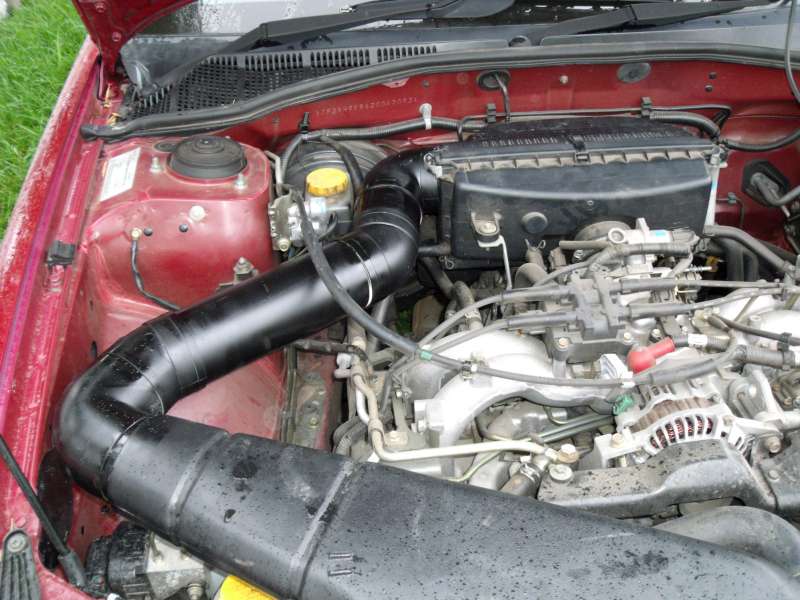

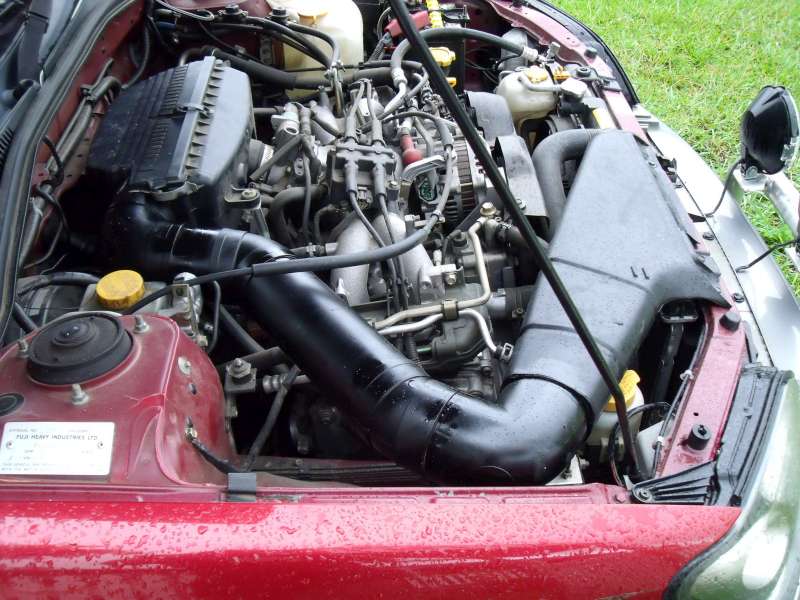

Pics
Not bad for about $17 in materials
Anyway, i got bored and got thinking about the tiny size of the intake on my Outback, so i went to the hardware and bought two 90, one 45 and one 22 degree 90mm stormwater bends.
I got a 90mm holesaw and cut a bigger hole in my airbox, and then used the bends to connect it to the over radiator intake funnel.
It isnt finished yet, im gonna drive it for a week and see how it goes, it needs a support bracket and its kinda noisy at low revs (sounds awesome above 4000rpm) so im thinking of grafting the resonator back on.
Pics
Not bad for about $17 in materials
- Attachments
-
- DSCF0887-800.jpg (70.54 KiB) Viewed 3293 times
-
- DSCF0888-800.jpg (76.68 KiB) Viewed 3311 times
Current rides: 2016 Mitsubishi Triton GLS & 2004 Forester X
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
- discopotato03
- Senior Member
- Posts: 2134
- Joined: Sun Mar 18, 2007 9:29 am
- Location: Sydney
I don't suppose there is a larger airbox and panel filter in the Subaru range that fits in the original space is there ?
The thing is that all ya have in an atmo charged engine is atmospheric pressure to feed it so the lowest restriction system is the one that gets all the available pressure to charge the cylinders .
Of course cool air is dense air so cool is er cool ...
Sometimes people chase cool air from the inner side of the inner guard but maybe not the best in an off roader - particularly if you take it swimming .
Really having warm air is of little consequence at low speeds and loads , its higher loads where the throttle is open wider at low revs that hot air detonation can be a problem .
That thing should have reasonably sophisticated knock control so you wouldn't hear it ping but retarded timing takes the wind out of the sails a bit .
Maybe if really keen you could get one of the better AWD dyno mobs to retune its computer and reflash its memory - if it has flash memory that is . I've no idea how soft Subaru has those engine management systems .
Another option on some of those EJ's is to turn the plenum section around so that the induction faces forwards - less roar . Dunno what you do for ducting on an NA one though .
Always options to play with .
PS Don't ya hate this time of year when nothings open and skilled friends go postal .
Cheers A .
The thing is that all ya have in an atmo charged engine is atmospheric pressure to feed it so the lowest restriction system is the one that gets all the available pressure to charge the cylinders .
Of course cool air is dense air so cool is er cool ...
Sometimes people chase cool air from the inner side of the inner guard but maybe not the best in an off roader - particularly if you take it swimming .
Really having warm air is of little consequence at low speeds and loads , its higher loads where the throttle is open wider at low revs that hot air detonation can be a problem .
That thing should have reasonably sophisticated knock control so you wouldn't hear it ping but retarded timing takes the wind out of the sails a bit .
Maybe if really keen you could get one of the better AWD dyno mobs to retune its computer and reflash its memory - if it has flash memory that is . I've no idea how soft Subaru has those engine management systems .
Another option on some of those EJ's is to turn the plenum section around so that the induction faces forwards - less roar . Dunno what you do for ducting on an NA one though .
Always options to play with .
PS Don't ya hate this time of year when nothings open and skilled friends go postal .
Cheers A .
- AlpineRaven
- Senior Member
- Posts: 3682
- Joined: Wed Oct 19, 2005 10:00 am
- Location: Melbourne, Victoria, Australia.
yeah it'll give you better power output... but be careful when you drive in water in nose, once water gets in your engine... zzziiiipppp... goodbye!
Cheers
AP
Cheers
AP
Subarus that I have/had:
1995 Liberty "Rallye" - 5MT AWD, LSD - *written off 25/8/06 in towing accident.
1996 Liberty Wagon - SkiFX AWD 5MT D/R, Lifted.. Outback Sway Bar, 1.59:1 Low Gearing see thread: 1.59:1 in EJ Box Page
Sold at 385,000kms in July 2011.
2007 Liberty BP Wagon, 2.5i automatic
1995 Liberty "Rallye" - 5MT AWD, LSD - *written off 25/8/06 in towing accident.
1996 Liberty Wagon - SkiFX AWD 5MT D/R, Lifted.. Outback Sway Bar, 1.59:1 Low Gearing see thread: 1.59:1 in EJ Box Page
Sold at 385,000kms in July 2011.
2007 Liberty BP Wagon, 2.5i automatic
Yep, and then you get stuck into the engine with a 9" grinder, eh Gannon? Not likely to be a problem though - that's the standard Outback intake position, and seems to work well.AlpineRaven wrote:yeah it'll give you better power output... but be careful when you drive in water in nose, once water gets in your engine... zzziiiipppp... goodbye!
Cheers
AP
If you're interested in doing a stage 2, I'd aim to bend or replace that intake funnel to give the air a straighter path straight back towards the airbox entry. Looks good now though.
Dane.
[SIGPIC][/SIGPIC]
1993 EA82/EJ18/EJ22/EJ22/EJ20/EJ22 L Series perpetual project
1993 EA82/EJ18/EJ22/EJ22/EJ20/EJ22 L Series perpetual project
- Gannon
- Senior Member
- Posts: 4580
- Joined: Sat Nov 05, 2005 10:00 am
- Location: Bowraville, Mid Nth Coast, NSW
He he!GOD wrote:Yep, and then you get stuck into the engine with a 9" grinder, eh Gannon?
The little bit on the end of the funnel is a woeful restriction. Thats why i cut it off and heated the funnel up and jammed the piece of 90mm pipe up there. Its much larger now.
Im gonna use one of these halfway, as a place for any water to fall into, and i'll drill a little hole in the bottom. It may also quieten it down a bit
Current rides: 2016 Mitsubishi Triton GLS & 2004 Forester X
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
- discopotato03
- Senior Member
- Posts: 2134
- Joined: Sun Mar 18, 2007 9:29 am
- Location: Sydney
- Gannon
- Senior Member
- Posts: 4580
- Joined: Sat Nov 05, 2005 10:00 am
- Location: Bowraville, Mid Nth Coast, NSW
You would have to be doing very well to get water into the intake funnel on the outback, i rekon the front of the bonnet would have to be under water before water was sucked up over the top of the radiator. And even if it did, there are numerous channels and holes in the funnel to let the water out.

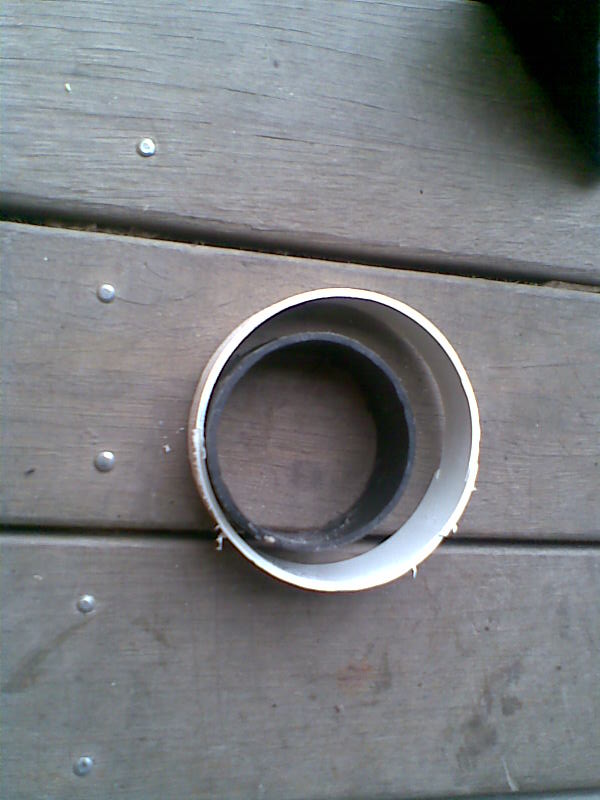

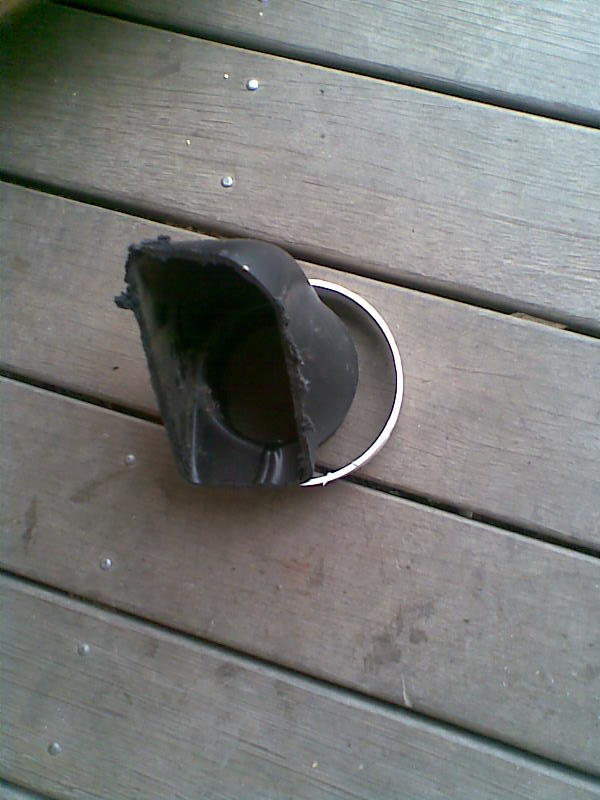

These pics compare the size difference between the original end of the funnel and whats in there now
